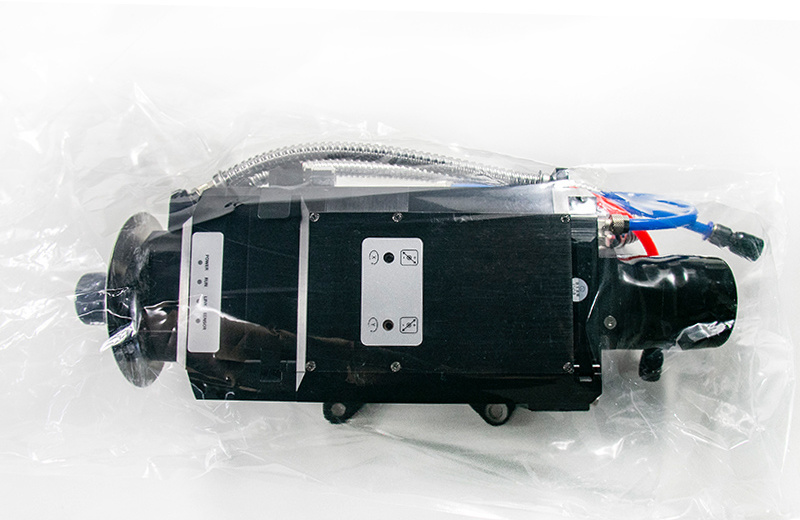

BLT662H Laser Cutting Head
>>Technical Parameter
Cutting head: BLT642H
Laser wavelength: 1030-1090nm
Laser power: ≤20KW
Fiber interface: QBH, QD, Q+, ADD
Spot magnification: M=2.0
Focus adjustment range: ±50mm (optical ratio 1:2 100:200)
NA: Max.0.13 at Fc100
Centering adjustment range: ±1.5mm
Focus acceleration: 7.5m/s²
Cutting gas interface: φ10, maxmium 25bar (2.5Mpa)
Nozzle cooling gas connection: φ6, maxmium 5bar (0.5Mpa)
Water cooling interface: φ8, maxmium 5bar (0.5Mpa), minimum flow 2.0l/min
Operating temperature: 5~55℃
Storage temperature: -25~+55℃
Size: 428.3X181
Weight: About 9.5kg

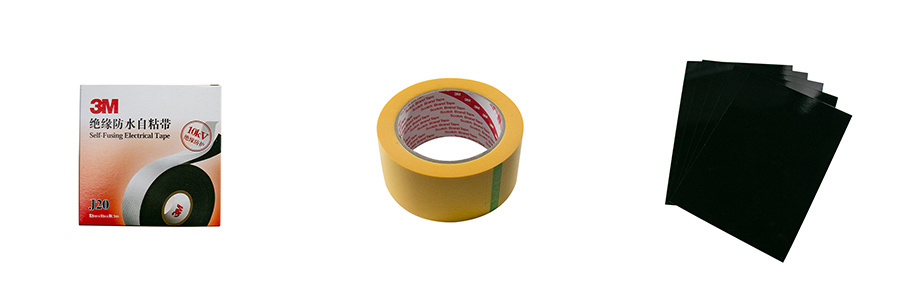

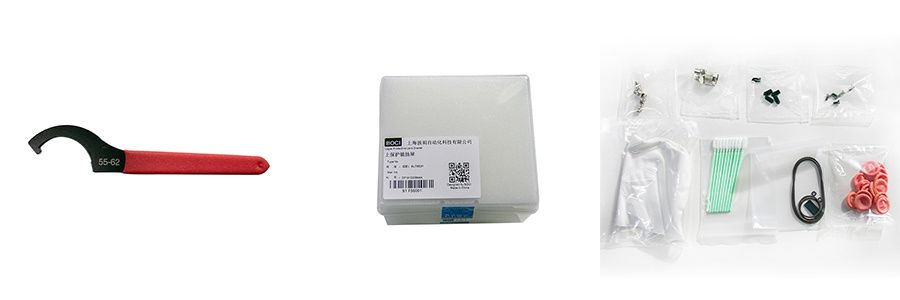

>>Related Spares
